specifications
Manufacturer:
Griffin Armament
Caliber:5.56 mm NATO
Griffin Armament M4sd Muzzle Brake 5.56mm
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
5.56 mm NATO | Griffin Armament | None | None None | $ 84.95 | RainierArms | Add |

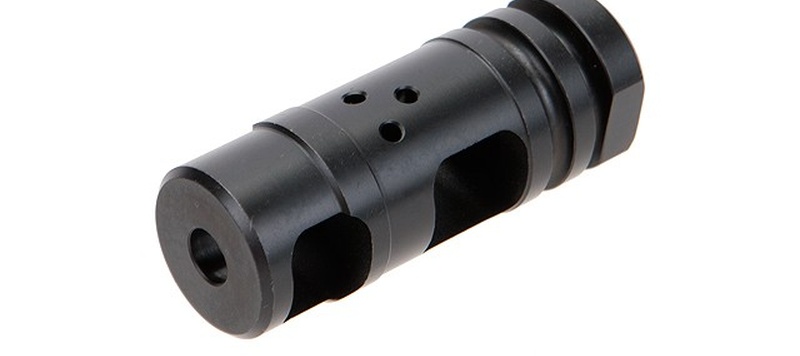

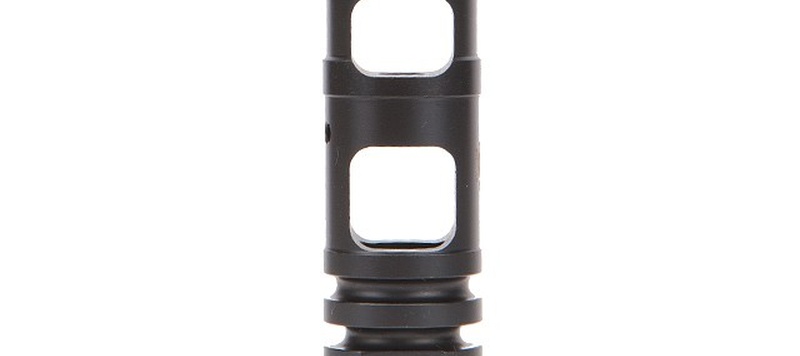

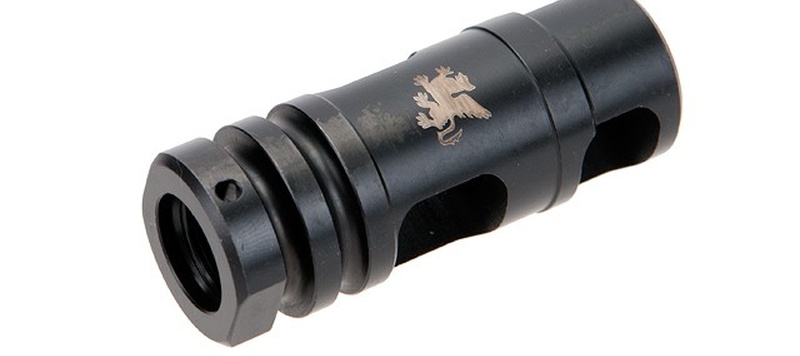

The M4SD muzzle brake provides high efficiency recoil reduction and two durable, sacrificial baffles for use inside M4SD /30SD sound suppressors. CNC Machined and outside diameter ground from high strength, corrosion and wear resistant, 17-4 precipitation hardened stainless steel. The M4SD muzzle brake is black oxide finished. 1/2×28 threads offer compatibility with most 5.56mm Ar-15/M-4 carbine family weapons.
Overall length of 2.25" will bring 14.5" barrels to the minimum legal length of 16.1" when permanently attached.
Includes shim set and over-travel stop washer.
Over-travel stop tab should be positioned at the bottom of the muzzle device (6 Oclock).
Diameter:
.863″
OAL:
2.25”
Weight:
2.7 ounces
Materials:
17-4PH Stainless Steel
Finish:
Black Oxide
Attachment:
1/2×28 Thread
Features:
Ambidextrous QD Mount
Free of wear prone geometry
Precisely calculated porting to neutralize muzzle movement
2 Sacrificial baffles to extend the life of your suppressor
17-4 PH Stainless steel to withstand hard use
Lustrous Melonite Finish
Griffin Laser Logo Marked
1/2x28 industry standard Thread Pitch for 5.56mm carbines
Shim set Included
Over-Travel stop washer Included
Compatible with M4SD series and 30SD silencers
