specifications
Manufacturer:
Lead Star Arms
Platform:AR-15

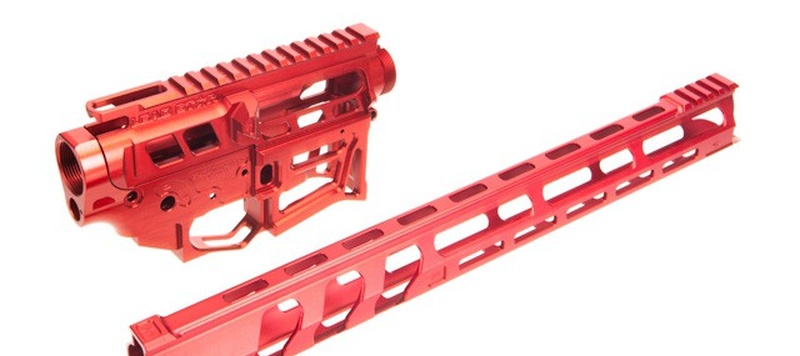

Lead Star Arms Lsa-15 - Skeletonized Ar-15 Builder's Set With 17" Lsa-15 Free Float - Red
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
None | Lead Star Arms | None | None None | $ 763.99 | RainierArms | Add |

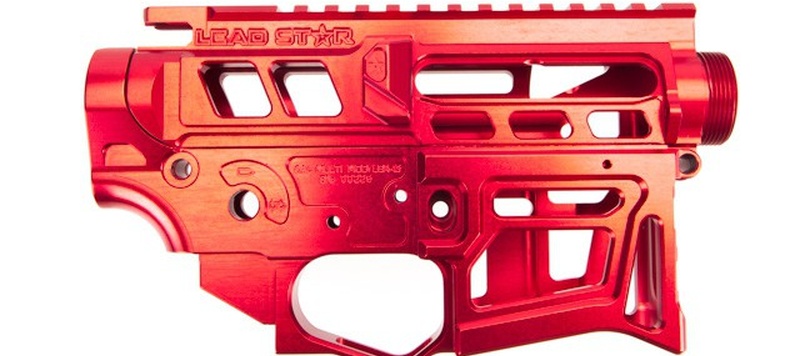

Build an LSA-15™ AR-15 into any configuration with our Builder's Kits. Includes our Ravage Extended Charging Handle Latch when you buy the kit. Now you have the freedom to choose your own trusted parts and build the rifle of your dreams!Total kit weight: 1.7 lbsUpper Receiver
Precision CNC machined from 7075-T6 billet aluminum.
Lead Star's truss system design reinforces key areas for increased strength without added weight.
Skeletonized for further weight reduction.
Flat top picatinny design for versatility in mounting optics and other enhanced components.
CNC engraved numbered rail system for indexing.
M4 feed ramps for added reliability.
Type III Class 2 hard coat anodized.
Designed to be compatible with MIL-spec lower receivers so it can be used if necessary but lines will not match.

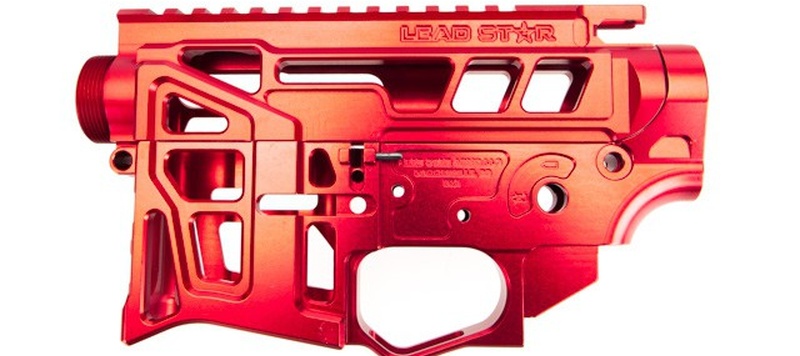

Lower Receiver
Fully CNC machined from 7075-T6 billet aluminum for extreme precision and enhanced durability.
Lead Star's truss system design reinforces key areas for increased strength without added weight.
Skeletonized for further weight reduction.
Front magwell grip surface designed for the operator to grip and maintain weapon control even in the most extreme conditions.
Beveled magwell entry allows faster magazine changes.
Tension device to increase rigidity between upper and lower receivers.
Built in trigger guard eliminates the need for a flip down trigger guard.
Type III Class 2 hard coat anodized.
Designed to be compatible with MIL-spec lower receivers so it can be used if necessary but lines will not match.

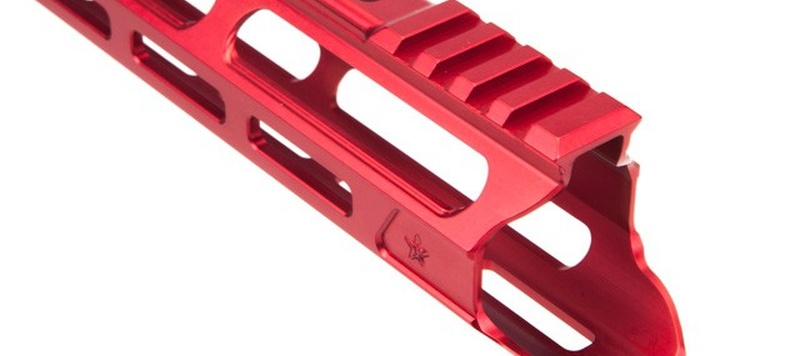

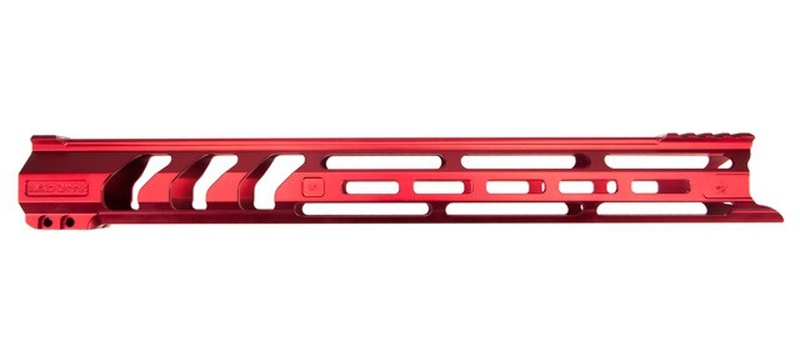

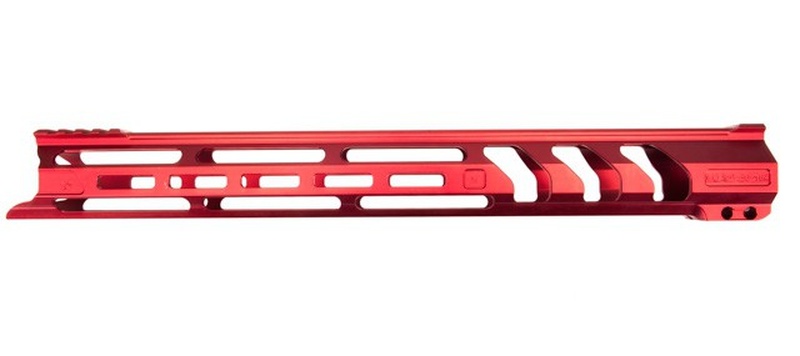

17" LSA-15™ Free Float
CNC machined from 6061-T6 aluminum for extreme precision and enhanced durability.
Unique design offers ultra capture around the barrel nut eliminating the requirement for anti-rotation tabs.
Eliminates harmonics from attached accessories greatly improving weapon accuracy.
Four picatinny slots at the 12 o'clock position for mounting back up sights.
M-LOK slots at the 3 and 9 o'clock positions and full length M-LOK at the 6 o'clock position for mounting only the picatinny rail needed or accessories.
Includes barrel nut, shims, mounting screws and barrel nut wrench.
Type III Class 2 hard coat anodized.
Weight: 9.2 oz
Ravage™ Extended Charging Handle Latch
Unique design geometry produces a faster release and a linear pull, one of the most cost effective and best enhancements you can make to your AR.
Extended design allows easier charging with added optics and sights.
High strength for added reliability under extreme conditions.
Precision CNC machined aluminum.
Designed for use with all standard/MIL-SPEC AR-15 charging handles.
Weighs only 0.3 oz.
Type III Class 2 hard coat anodized.
Includes stainless steel coil spring pin that offers greater strength over standard roll pins for increased reliability.
FFL Required Before Shipping.Please have your dealer email their license to [email protected] or they can also fax it in. Please give us a few days to process the information.
