specifications
Manufacturer:
Centurion Arms
Platform:AR-15
Caliber:5.56 mm NATO
Centurion Arms Ar-15 .223/5.56 Cmr Keymod-15"
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
5.56 mm NATO | Centurion Arms | None | None None | $ 228.00 | RainierArms | Add |

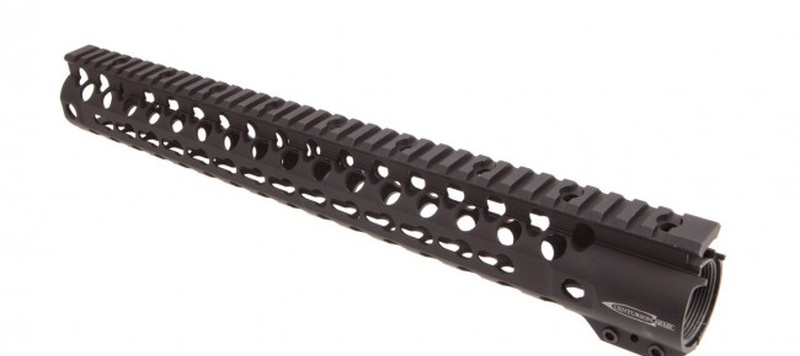

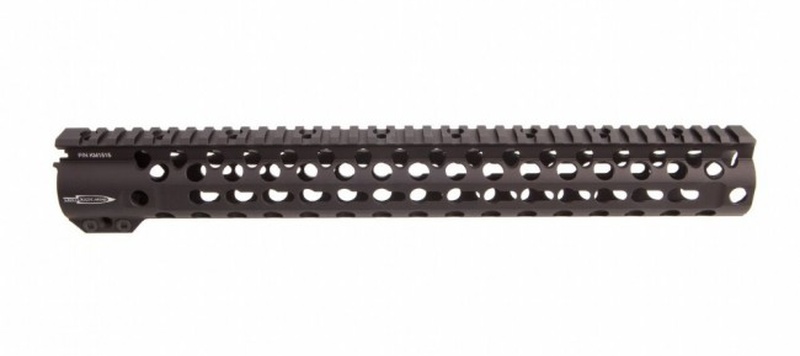

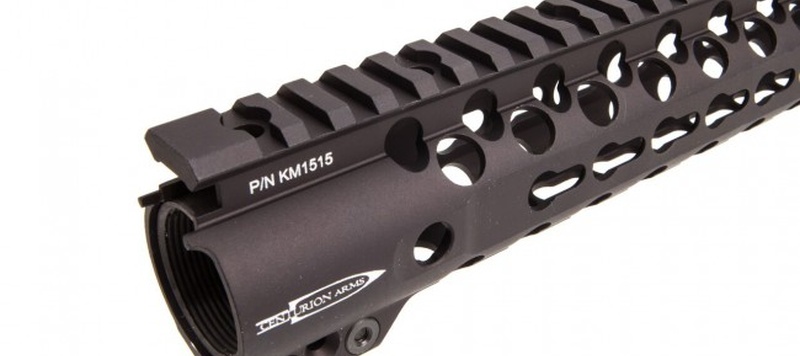

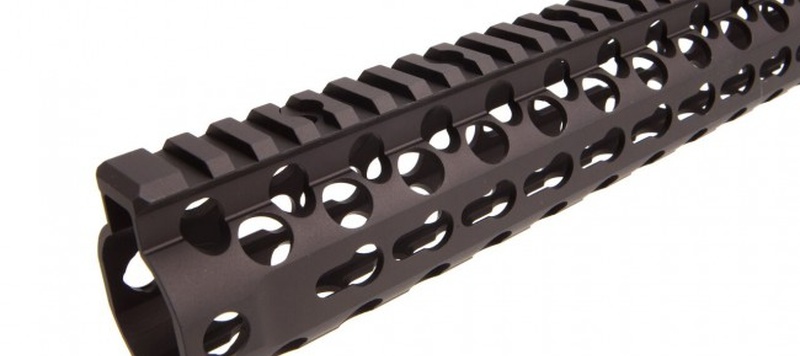

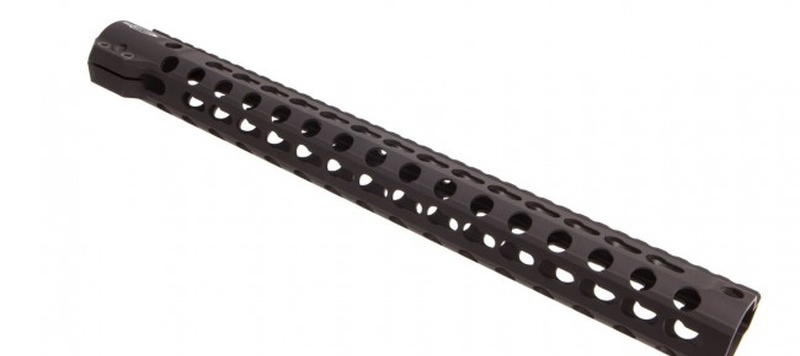

Our patented CMR rail system is a lightweight, rugged, one piece, free float hand guard that, when installed, gives the upper a continuous 12 o’clock rail. The CMR system clamps to a proprietary barrel nut that can be installed on 5.56/.223 based AR platform systems. It was designed with the top 1913 rail for mounting the most common accessories, yet does away with the need for 1913 rail at the 3, 6, and 9 o'clock positions. Here, other accessories can be directly mounted to it with a dedicated, simple, light-weight, mount. However, it does allow for 1913 rail to be added, if needed, for some less common accessories. Additionally, we built in anti-rotation QD sling swivels in 4 positions. The main objective was to have a smaller, lighter weight, more ergonomic, hand guard that maintains or enhances functionality for the end user. As professional end users ourselves, we know the importance of keeping things simple and that was our design intent here... a K.I.S.S. (keep it simple, stupid) system. Features: Material: 6061 T6 Finish: Type III hard coat anodized Weight: 15in-11.1oz with barrel nut and hardware Length: 15in (15.044”) Width: 1.39(body of tube) 1.75 (at QD sling swivels) Height: 1.910(body of tube) Inside diameter: 1.230 Rails: 1913 spec rail on top Integrated QD Attachment sockets - Limited Movement THIS PRODUCT IS MACHINED IN AMERICA ON AMERICAN MADE MACHINES!! **IMPORTANT PLEASE NOTE*** - Currently our gas block is the only one that Centurion Arms can guarantee to fit under the CMR. This is due to the CMR's extreme low profile.
