specifications
Manufacturer:
CMT

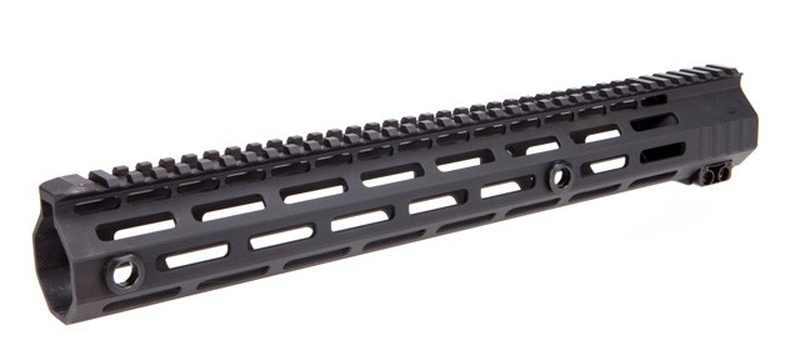

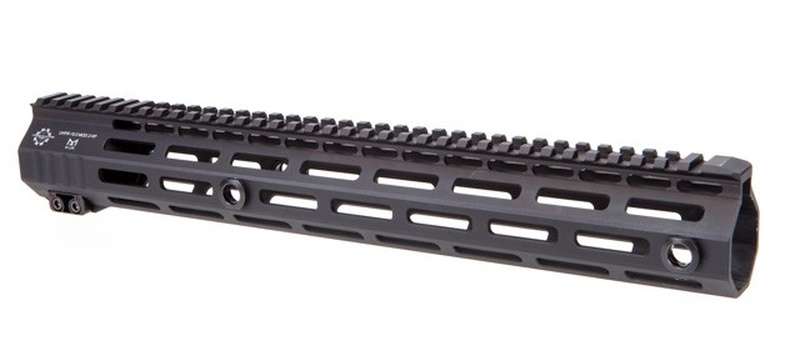

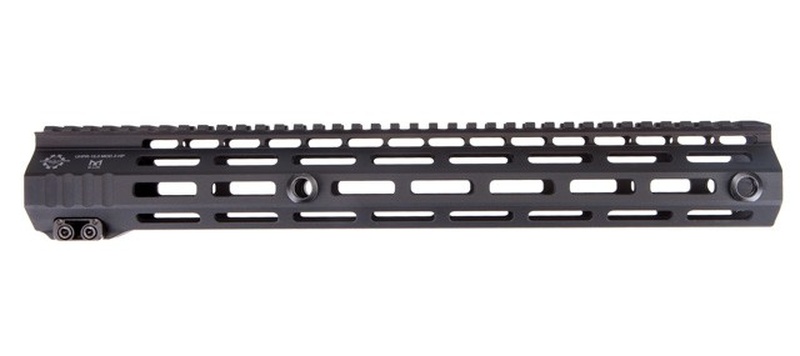

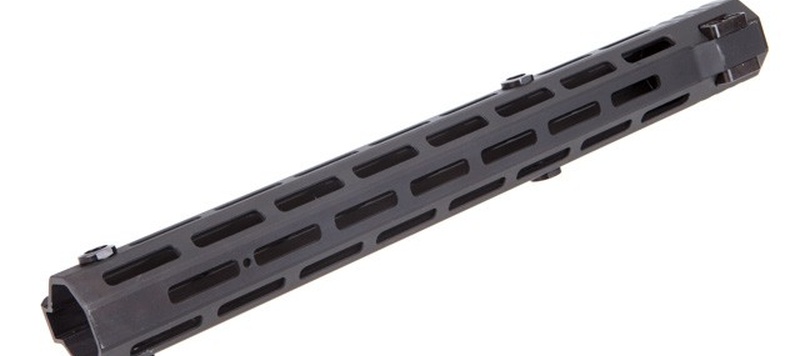

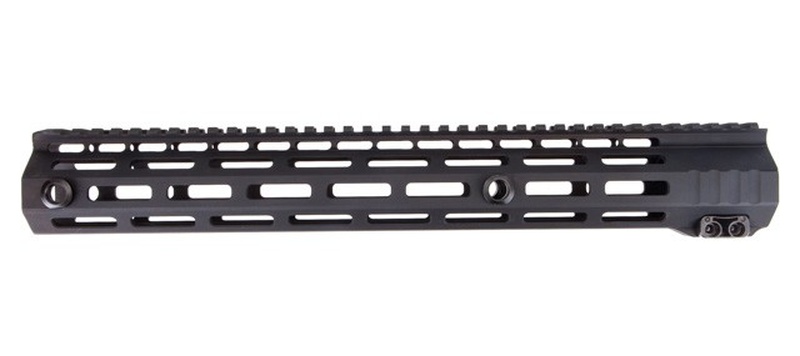

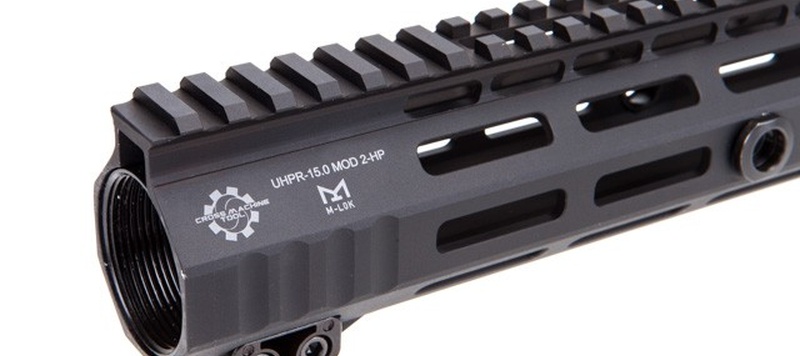

Cmt Tactical Ar-10 Uhpr Mod 2-Hp .308/7.62 Rails - 15"
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
None | Cmt | None | None None | $ 239.00 | RainierArms | Add |
Compatible with all Large Frame DPMS High Profile upper receiversThe CMT UHPR™-HP series of AR10 Rails are designed from the ground up for hard use either in tactical, competition or hunting scenarios. To withstand the rigors placed on heavier large frame weapons we have opted to utilize 4140 Pre-hardened material for the barrel nut & sling QD sockets. We use 17-4 PH stainless steel on the Patent Pending attachment/anti-rotation system, never opting for lessor/cheaper materials at these critical load bearing points.
Rail- 6000 series extruded Aluminum Milspec Type 3 Class 2 Hard Black anodized
Easy installation with included barrel nut wrench.
Barrel Nut- 4140 pre-hardened alloy steel- Black Nitrided
17-4PH Cored Stainless Steel Rail mounting attachment- Patent Pending provides maximum lock on barrel nut eliminating forward slippage or handguard

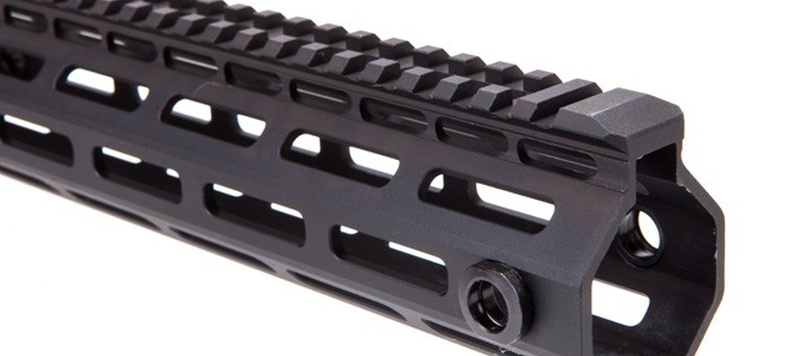

4 each Heavy Duty Nitrided alloy steel QD sling socket inserts, 2 on each side/end at the 3 o'clock & 9 o'clock positions
No Barrel nut shims required for installation
Does not contact or apply side loads to gas tube
Inner Diameter of handguard - 1.420"
MLOK Slots at the 3, 6 and 9 o'clock positions
