specifications
Manufacturer:
JL Billet

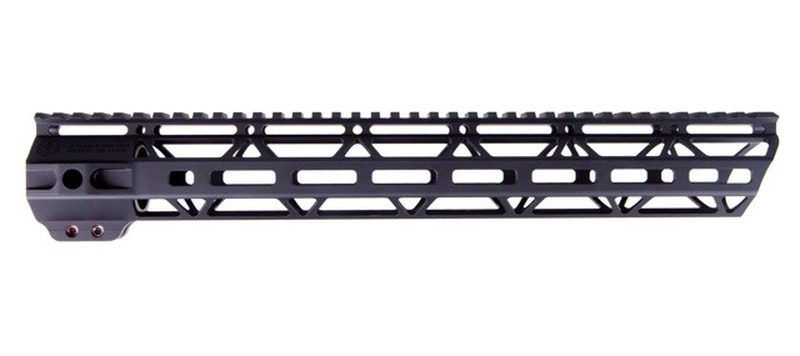

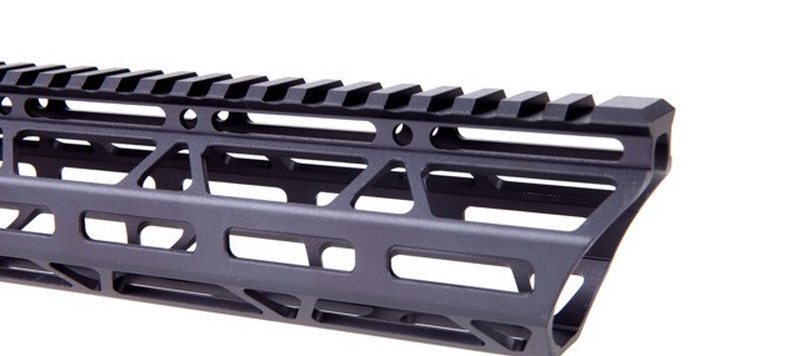

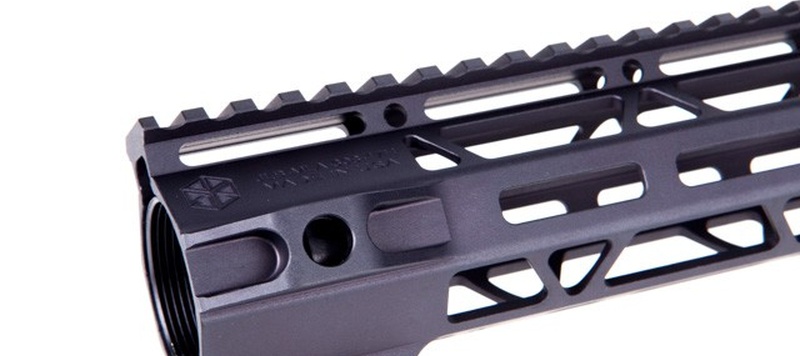

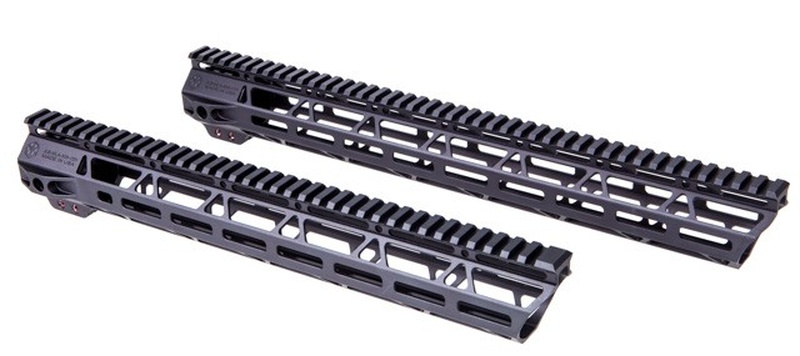

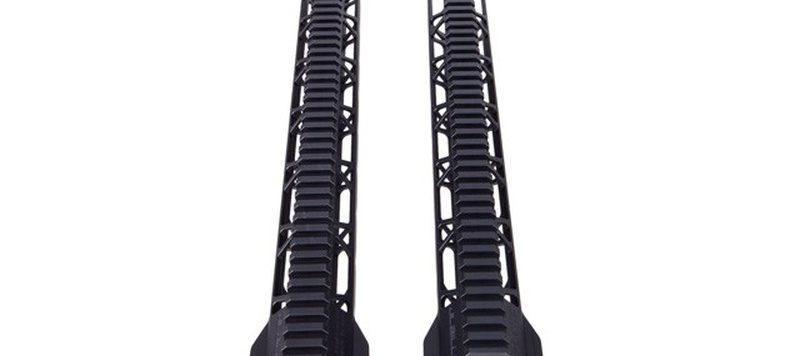

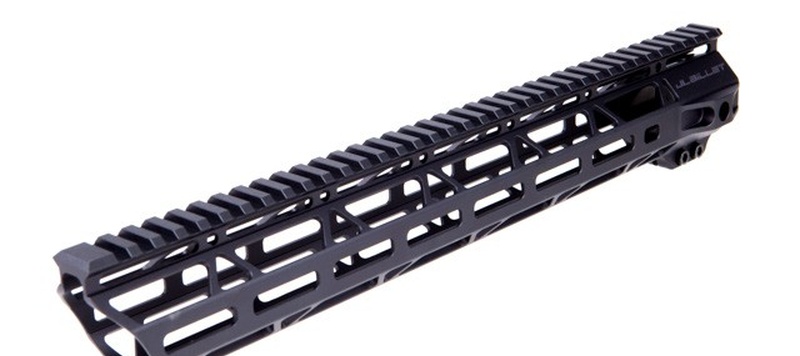

Jl Billet Ar-10 .308 Angle M-Lok Hand Guard/High Profile
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
None | Jl Billet | None | None None | $ 242.95 | RainierArms | Add |
The continuous top 1913 Picatinny rail allows you to mount iron sights, optics and any other accessories without additional rail sections. The Magpul M-Lok system allows users to customize the hand guard with rail sections and direct mount accessories. The hand guard is constructed of 6061-T6 aircraft aluminum and finished with an optional Mil-Spec type III hard coat black anodizing.
The MLA has a precision bore to fit the proprietary barrel nut which removes any unwanted play and ensures an exact fit!! Installation requires a 1-5/16" crows foot wrench (not included) for the barrel nut; standard AR-10 barrel nut wrenches will not work with this hand guard system. These rails are some of the lightest you will find anywhere!
*DPMS High Profile Rail Height*
If you are looking for a unique look, light weight, and quality forend then this is it!
Specs:
Free Float Design
Material: Hard Coat Anodized Aluminum Handguard, 7075-T6 Barrel Nut
Stainless Steel Key Seat
Precision Bore
1913 Picatinny Continuous Top Rail
Accepts M-Lok Rail Sections & Accessories (2x5 slot sections included)
Requires 1-5/16" Crowfoot Wrench (not included)
Rail length is measured along the top
1.67" OD, 1.52" ID
Weight 15" 10.9 oz with barrel n
Weight 17" 14 oz with barrel nut
