Manufacturer:
Battle Arms Development Inc
Platform:AR-15
Battle Arms Development Ar-15 Monolithic Pdw Lower Receiver + Stock System
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
None | Battle Arms Development Inc | None | None None | $ 899.00 | RainierArms |
Specifications:
Built-In PDW Stock System
Ultra Compact Design - 4.75" Stock Length for Ultimate Concealment
Proprietary Ultra Compact Buffer & Recoil Spring System - Compatible with MilSpec M16/AR15 Bolt Carrier
Self Contained Buffer System - No Proprietary Bolt Carrier Required! Ability to "Shotgun" the Upper
Monolithic Engineering - Receiver and PDW Stock Housing Precision CNC From Single Block of Billet 7075-T6 Aircraft Grade Aluminum for Superior Strength and Lightweight Design
Interchangeable Cheek Rest for Versitility (Color Cheek Rest Options Available In the Future)
Continous Cheek Weld for Ultimate Comfort and Stability/Accuracy
Billet CNC Milled 7075-T6 Aluminum Buttstock
(1) Build-In, Integral QD Sling Points at Rear of Receiver Stock Housing & Buttstock
Heat Treat & Harden S7 Tool Steel .315" Dia. Guide Rods for Ultimate Impact Strength and Durability
No Metal-To-Metal Contact between Guide Rods and Receiver Housing
New Industry Standard in Smooth Stock Operation with Linear Motion Guide Bushings
(4) Locking Stock Positions - Lockable in Both Direction. From 4.75" Fully Collapsed to 8.75" Fully Extended (measured from rear of receiver to end of stock)
Dimpled Locking Stops with Stainless Steel Ball Bearing & S7 Tool Steel Locking Latch
Ambidextrous Bolt Release (hardware included)
Ambidextrous Magazine Release (hardware included)
MIL-A-8625F, Type III, Class 2, Hard Anodized Flat Black Finish
Compatible with TDP/Mil Standard AR Lower Receiver Parts (except for built-in proprietary components)
Dimensional Accuracy Inspection
All Sharp Edges De-Burred Sharp by Hand
Pictograph Selector Markings Properly Marked for 90° Safety or BAD-ASS-ST / BAD-CASS-SA-ST Short Throw Ambidextrous Safety Selectors
Receiver Safety Selector Hole & Internal Wall Machined with Relief Cut for Battle Arms Development "SHORT-THROW / REVERSIBLE" Ambidextrous Safety Selectors
Multi Caliber Marking for Build Versatility
Flared, Deep Beveled Magwell
Easy in Install Set Screw Bolt Catch Pin (Pin Included)
Captured Takedown Pin Detent Spring (Set Screw Included)
Upper/Lower Receiver Tension Screw (Screw included)
Integrated Trigger Guard
All Components, material, and packaging made in the USA
Laser Engraved Logo
Patents Pending: Monolithic Design, Stock Locking Mechanism, and Ultra Compact Buffer & Recoil Spring System

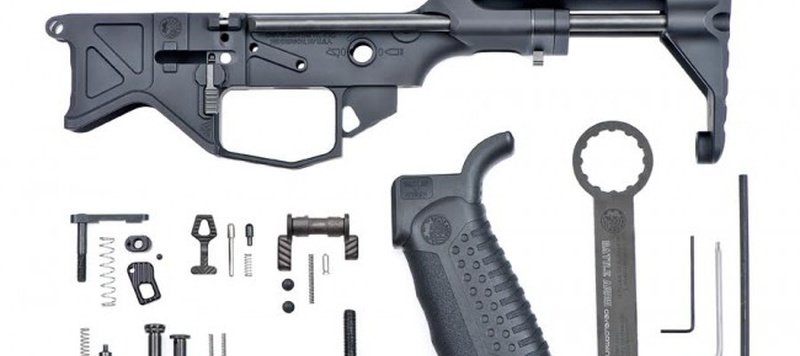

Additional Components Include:
BAD-CASS-SA-ST - Combat Ambidextrous Safety Selector - 50°/90° Reversible - Standard & Short Lever
BAD-ATG - Battle Arms Development Adjustable Tactical Grip - 3 Grips-In-One - 3 Different Angles
BAD-EMMR-L-B - Enhanced Modular Magazine Release - Large Finger Pad - Black
BAD-EPS - Enhanced Pin Set (Enhanced Pivot Pin & Enhanced Takedown Pin)
BAD-EBS - Enhanced Bolt Stop - CNC Milled from Billet 17-4 Stainless Steel
MilSpec Magazine Release & Spring
Bolt Catch Detent & Spring
Buffer Detent & Spring
WARNINGS:
Will not work with solid filled 9mm bolt carrier
Buffer system is designed for 5.56/.223 direct gas impingement system
Buffer system can work with piston driven AR if the rear, internal dimensions of the bolt carrier is Mil-Spec
Use of FAIL ZERO NICKLE BORON Bolt Carrier may cause damage to the buffer system due to the I.D. (Inside Diameter) of the BCG being undersized
Inside, rear cavity of the bolt carrier must be .625" diameter x .625" deep minimum to clear the buffer. Damage may occur if proper clearance isn't met.
FFL Required Before Shipping.
Please have your dealer email their license to [email protected] or they can also fax it in. Please give us a few days to process the information.
