specifications
Manufacturer:
Bravo Company MFG
Platform:AR-15
Caliber:.223 / 5.56
Barrel Length:18"
Bcm Ar-15 Upper Receiver Ss410 18 Rifle Kmr Alpha 15
Caliber | Manufacturer | Color | Weight | Merchant Price | Merchant URL | |
---|---|---|---|---|---|---|
.223 / 5.56 | Bravo Company Mfg | None | None None | $ 684.95 | RainierArms | Add |

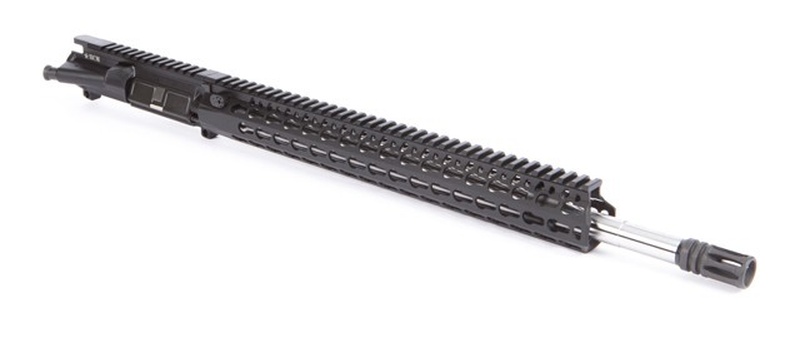

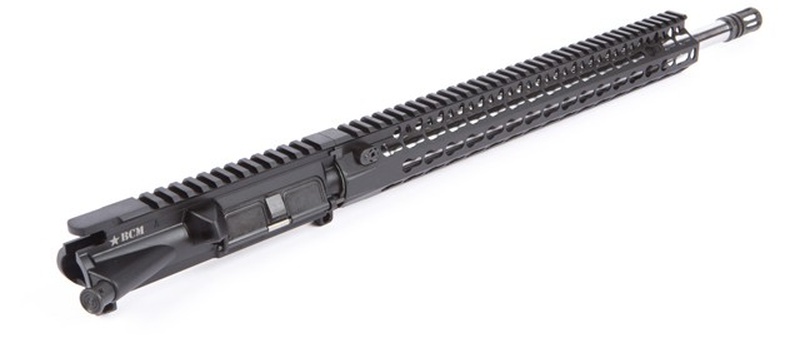

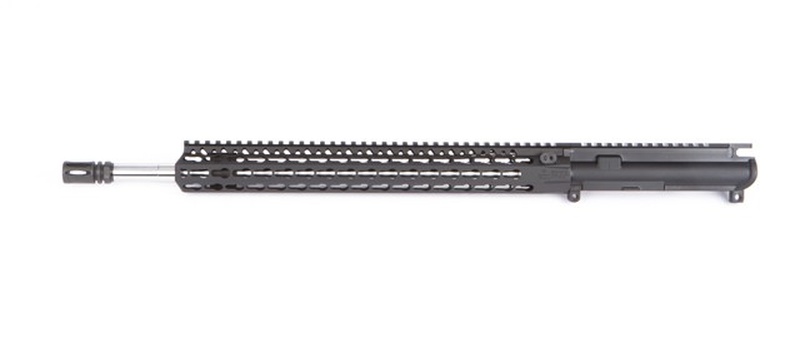

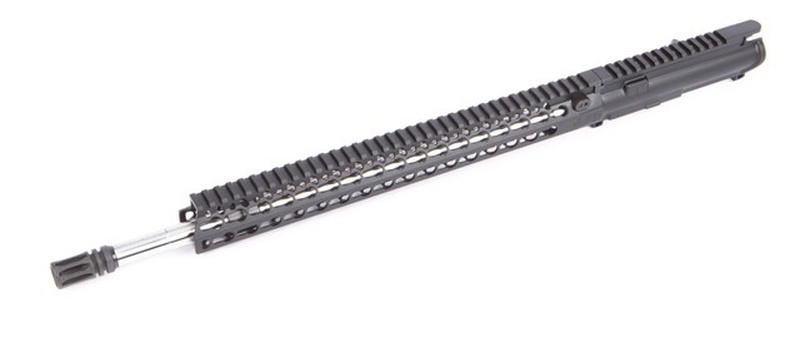

Made by Bravo Company MFG, Inc. (BCM) These Barreled Upper Receiver Groups are designed for shooting professionals with the Mil-Spec features for the demands of their duty.
Does Not Include bolt carrier group or charging handle.
All KMR ALPHA Upper Receiver Group Include:
One 3” Picatinny Rail Section
One BCM® KeyMod™ Sling Mount
Laser “T” Markings on Top Rail
Laser Engraved Logo
As a note: BCM barrel components are parkerized separately before assembly. Prior to shipping, all BCM upper receiver groups are test fired for function, laser bore sighted with a Milspec carry handle for sight alignment within Mil-Specs, and then batch samples are test fired for accuracy. As such, the upper receiver group will show handling marks consistent with these quality control procedures.

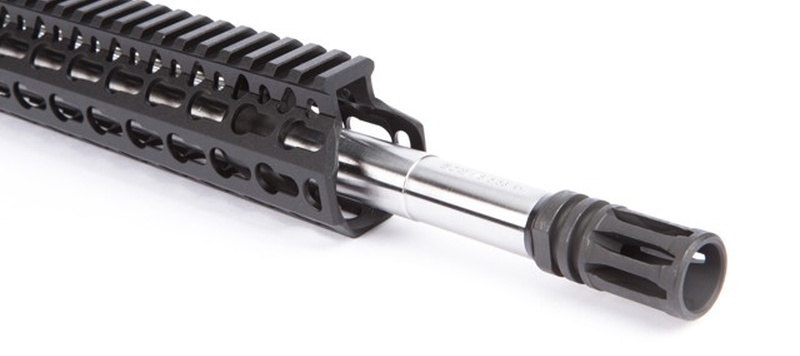

BCM SS410 Barrels This BCM stripped barrel is machined from a 410 stainless steel. It features hand lapped button rifling with a 1/8 twist rate and M4 feedramps. As with all BCM barrels it is proofed (HPT) and magnetic particle inspected (MPI). To give the shooter the best balance of weight and accuracy this BCM barrel has a mid weight profile and a rifle length gas system.
(410 stainless is a harder and more corrosion resistant than the conventional 416 stainless found in most barrels.) M4 Feed Ramp Barrel Extension M4 Feed Ramp Flat Top Receiver
In developing the USGI M4 carbine as one of the primary weapons for todays infantry, some modifications were performed to the original M16 platform to enhance the reliability of the shorter barreled carbines. With the shorter carbine gas system and the increased gas port pressure, the carbine cycled faster, and at times the cycle rate could be faster than the magazine would feed ammunition. One of the modifications done to increase reliable feeding included enhancing the angle and the length of the feed ramps. This USGI modification was done to both the barrel extension and the upper receiver, creating a longer and steeper feed ramp. These Mil-Spec M4 feed ramps are part of the original CNC manufacturing process. As a result, the factory machined M4 feed ramps on the receiver are hard coat anodized which adds significant strength to the aluminum. This feature is offered on all BCM uppers and all BCM barrels.

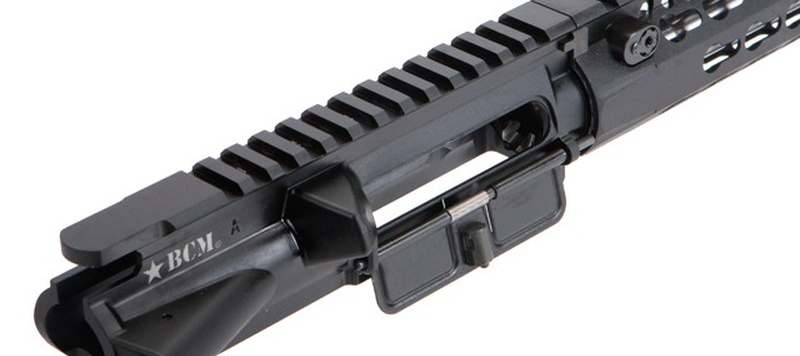

T-Marked Upper Receiver
The contemporary M16/M4 rifle is built around the concept of modularity. All of the BCM flat top uppers feature a USGI type laser etched T-marks to provide addressing for the remounting of tactical accessories such as optics, laser sights, etc. This enables the weapon platform to be easily configured and then accurately reconfigured for each specific mission.
HPT / MP Inspected Barrels
Military specifications require that barrels undergo a HPT (High-Pressure Test) load as a part of quality assurance procedures. Commonly referred to as a proof load, the M197 HPT is rated for 70,000 psi. BCM barrels are proof loaded and then MPI (Magnetic Particle Inspected) to detect any possible flaws in the barrels surface. The barrels are MP inspected with both circular and longitudinal magnetic fields per ASTME1444-01 (current Mil-Spec) to assure a high quality finished product. All BCM barrels are marked HP MP as our proof load marking.
Features:
M4 Feed Ramp Barrel Extension
M4 Feed Ramp Flat Top Receiver
T-Marked Upper Receivers
1/8 Twist Rates
5.56 NATO Chambers
410 Stainless Steel
HPT (High Pressure Test) Barrels
MPI (Magnetic Particle Inspected) Barrels
