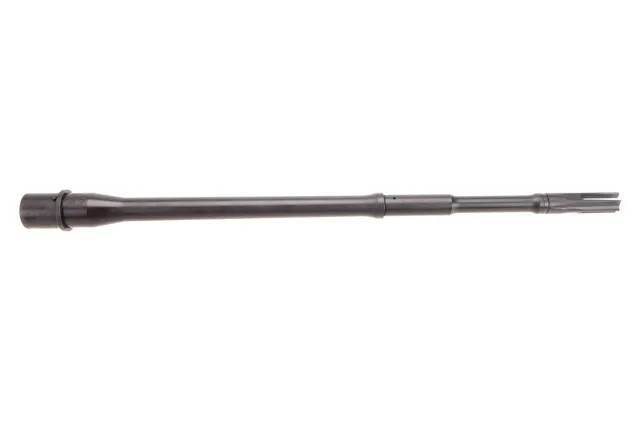

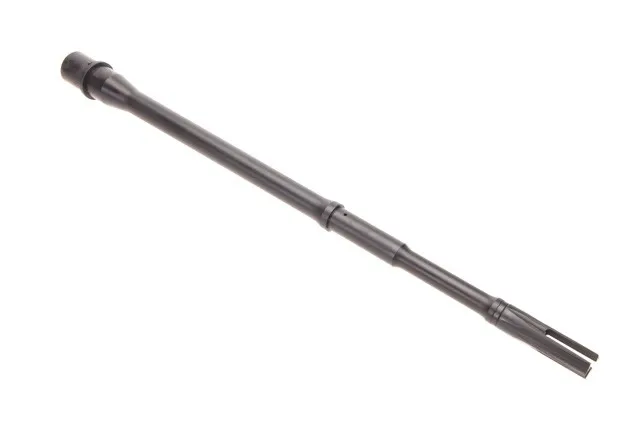

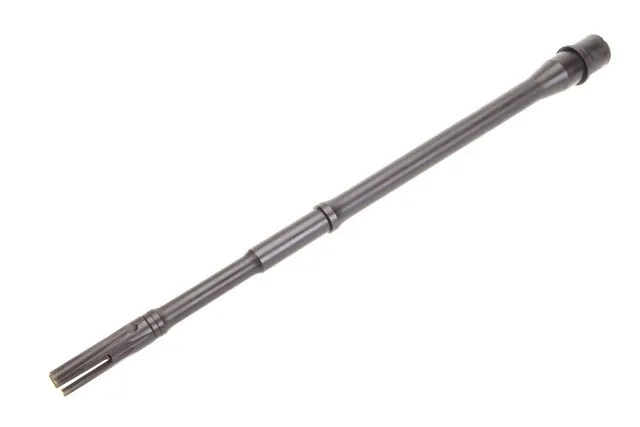

Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16"
Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16"
Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16"
Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16"
Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16"

Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16"

Faxon Firearms · Barrels

No ratings yet

Best price

$236.55at Rainier Arms

checked Aug 27, 2018

Buy at Rainier Arms

Where to buy

StorePriceAvailabilityBuyAdd to build
Rainier Arms $236.55checked Aug 27, 2018 Check store Buy at Rainier Arms

Prices and availability change often, so confirm on the store's site before you buy. We may earn a commission from these links.

About this part

The Faxon Firearms AR-15 5.56 NATO 14.5" GUNNER Mid-Length 4150 QPQ PINNED FLASH HIDER - 16" is a 14.5" 5.56 / .223 barrel from Faxon Firearms with a mid-length gas system. One store lists it, Rainier Arms at $236.55.

Fits and works with

Caliber
5.56 / .223 · Shop matching ammo
Bolt
Standard AR-15 (5.56 / 300 BLK / .350 Legend) · Bolt carrier groups
Gas system
Mid-length · Handguards
Barrel length
14.5" · Handguards

Specifications

Manufacturer
Faxon Firearms
Platform
AR-15
Caliber
5.56 mm NATO
Gas system
Mid
Barrel length
16"
Finish
Black

From the manufacturer


Just what is the Gunner profile?
The Gunner profile is a blend of two of the best performing profiles of all time, Gov't and Pencil.
Proving that every once and awhile, the Government can do something right, the Gunner's profile from the extension to the gas block mimics that well-known taper. From there, innovation takes over and the Gunner moves to a .625" gas block journal and our famed pencil profile out front.
Removing the weight from the front of the barrel ensures maximum versatility and keeps material to the rear to maximize heat resistance and mitigate whip.
We've taken them a step further, adding in our patent-pending permanently attached SLIM muzzle devices. Shooters can choose from a 3 port muzzle device or three-prong flash hider, both allowing the full assembly and disassembly of gas blocks and barrel nuts. Shooters are forever free to change their weapon's configuration without having to go to a gunsmith.
Faxon Firearms barrels are the pinnacle of value. Manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.
Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.
Faxon manufactures all our barrels in Cincinnati, Ohio under our ISO:9001 and AS:9100  quality certifications.

Barrel Material: 4150 CMV Steel
Barrel Type: Button Rifled
Barrel Caliber: 5.56
Barrel Twist: 1:8
Barrel Length: 14.5" Rifled, 16" Legal w/ Permanent Muzzle Device*
Barrel Profile:  GUNNER

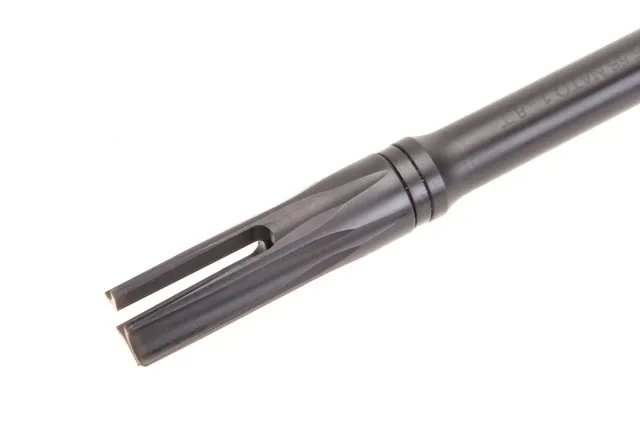

Muzzle Device: SLIM Tri Prong Flash Hider
Barrel Gas System: Mid
Inside Finish: QPQ Nitride
Outside Finish: QPQ Nitride
Muzzle Thread: 1/2-28 TPI (Threads Per Inch)
Gas Block Diameter: .625"
Gas Block Journal Length: 1.9"
Gas Port Diameter: .081"

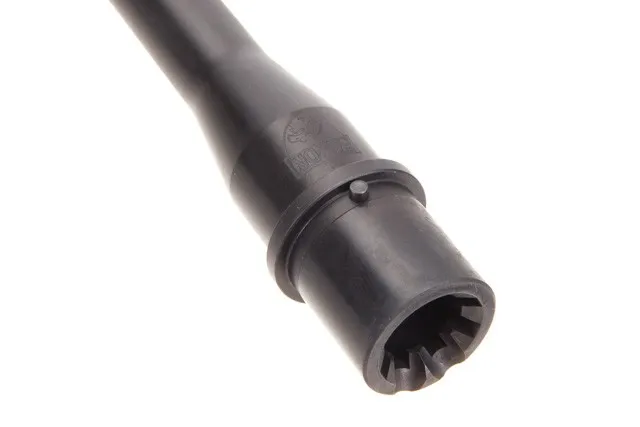

Barrel Extension: M4
Weight:  1.26 lbs
Magnetic Particle Inspected!
11-degree Target Crown

*Please note muzzle devices are attached permanently. Any attempt to remove the device will result in the destruction of the barrel and void all warranties.

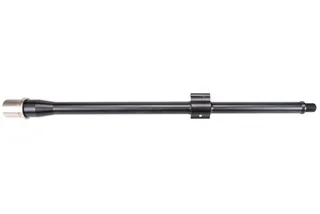

Similar barrels
