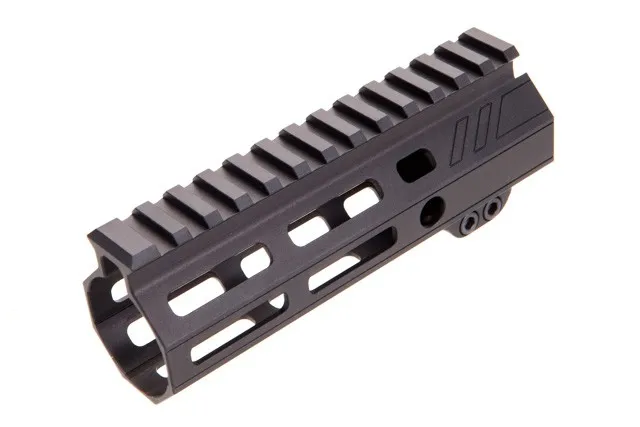

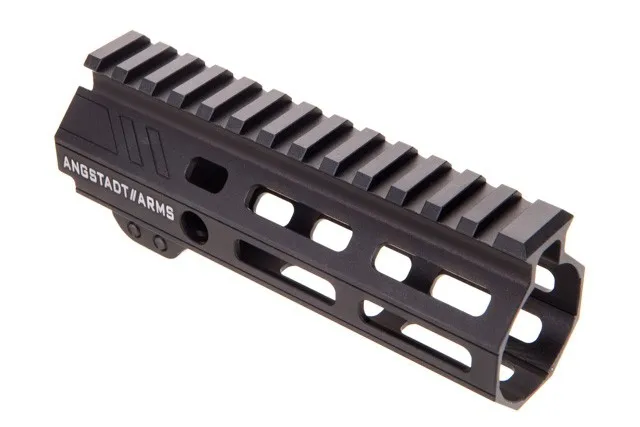

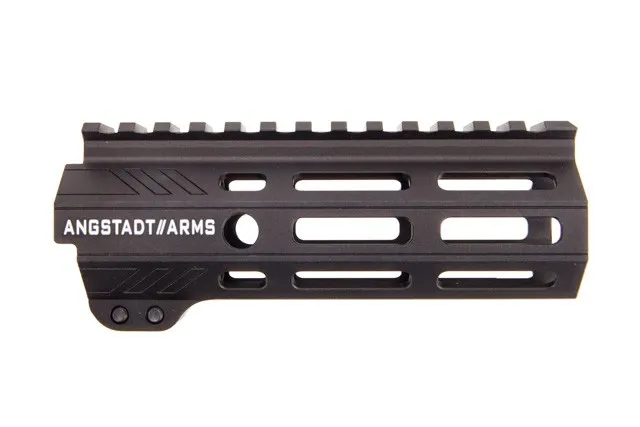

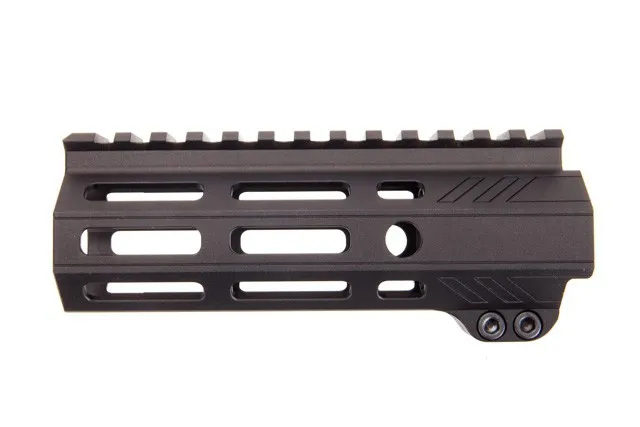

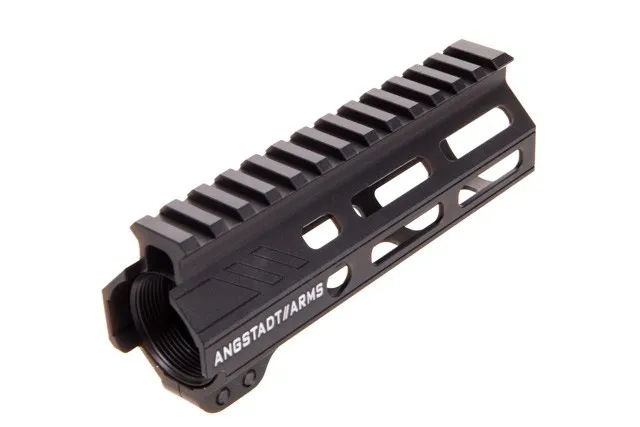

Angstadt Arms UDP Series Handguard - 5.5"

Angstadt Arms UDP Series Handguard - 5.5"

Angstadt Arms · Rails & Handguards

No ratings yet

Best price

$175.99at Rainier Arms

checked Aug 28, 2018

Buy at Rainier Arms

Where to buy

Store	Price	Availability	Buy	Add to build
Rainier Arms	$175.99checked Aug 28, 2018	Check store	Buy at Rainier Arms

Prices and availability change often, so confirm on the store's site before you buy. We may earn a commission from these links.

About this part

The Angstadt Arms UDP Series Handguard - 5.5" is a 5.5" handguard from Angstadt Arms. One store lists it, Rainier Arms at $175.99.

Fits and works with

Handguard length: 5.5" · Barrels

Specifications

Manufacturer: Angstadt Arms
Length: 5.5"

From the manufacturer

The Angstadt Arms 5.5” free float hand guard is the perfect choice for your next pistol or short barrel rifle build. Our unique design features a very slim profile (1.375″ ID) that still allows for the installation of a sound suppressor of 1.40″ in diameter and smaller to tuck inside of the handguard when used with an exact length 6” barrel. Works with 223/5.56 and 9mm calibers. Handguard does not require timing and installs with a standard wrench.
Features:

Free float, 7 sided design that allows for 45 degree offset mounting options
M-LOK® mounting interface on 7 sides
2 QD swivel mounting points
Continuous top mil-spec 1913 picatinny rail
Compatible with both forged and billet upper receivers
Compatible with both 223/5.56 and 9mm
Handguard does not require timing and installs with a standard wrench.
Mil-Spec hard coat black anodize finish
Weight: 5.4 oz
ID: 1.375* The last 3/4" of the handguard is bored out to 1.405”, allowing most aftermarket sound suppressors 1.39″ in diameter and smaller to tuck inside of the handguard when used with an exact length 6” barrel.
Length: 5.5”
