Vortex Razor HD Gen II-E Scope - 1-6x24 VMR-2 MOA

Every component, feature and performance characteristic of the Razor HD Gen II-E 1-6×24 riflescope is so well thought out and executed, it’s almost scary. And in 2018, its nearly ¼ of a pound lighter. Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium-range tactical applications. Optically, it delivers the highest level of clarity, resolution, color accuracy, light transmission and edge-to-edge sharpness. The ultra-forgiving eyebox with generous eye relief generates a heads-up-display-like sight picture for fast target acquisition and optimal monitoring of the surrounding environment. A true, daylight-bright illuminated center dot gives shooters ultimate close-quarters versatility.

Optical Features:



APO System
Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.


Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.


HD Lens Elements
Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.


XR™Plus Fully Multi-Coated
Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.


Plasma Tech
Cutting edge application process provides unparalleled coating durability and performance.

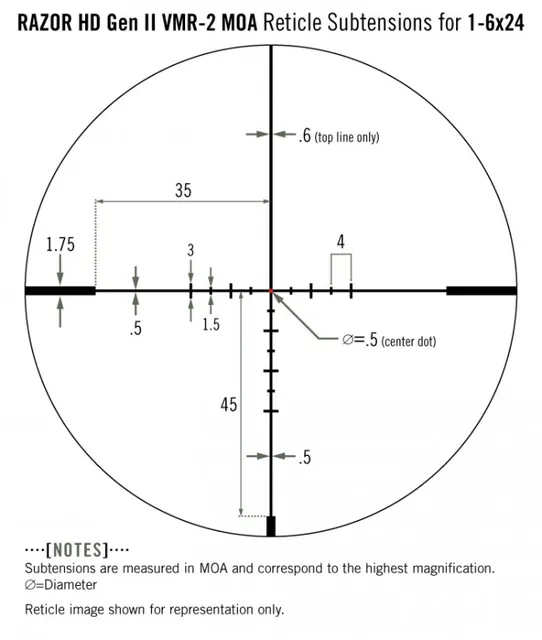

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.


Illuminated Dot
Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.


Locking Illumination
Locks illumination at preferred setting.




Construction features:



Tube Size
30 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.


Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.


Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.


Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.


Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.


Shockproof
Rugged construction withstands recoil and impact.


Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.


ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

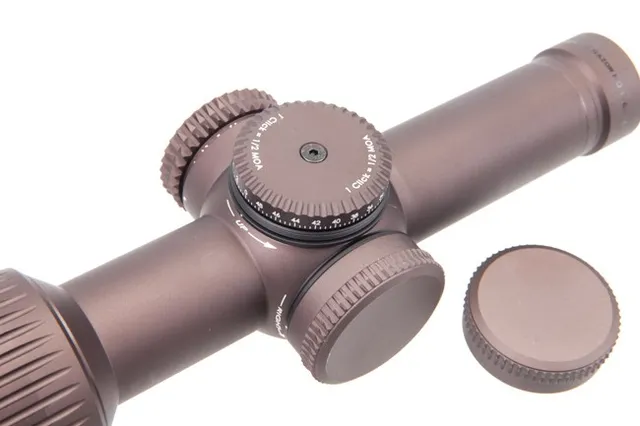

Large Diameter Turrets
Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.




Internal Mechanism Design Features:




Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665


Turret Screws
Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.


Erector Tube System
Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.




Specs:




Magnification
1-6 x


Objective Lens Diameter
24 mm


Eye Relief
4.00 inches


Field of View
115.2-20.5 feet/100 yards


Tube Size
30 mm


Turret Style
Low Capped


Adjustment Graduation
1/2 MOA


Travel per Rotation
50 MOA


Max Elevation Adjustment
150 MOA


Max Windage Adjustment
150 MOA


Parallax Setting
100 yards


Length
10.1 inches


Weight
21.5 ounces
