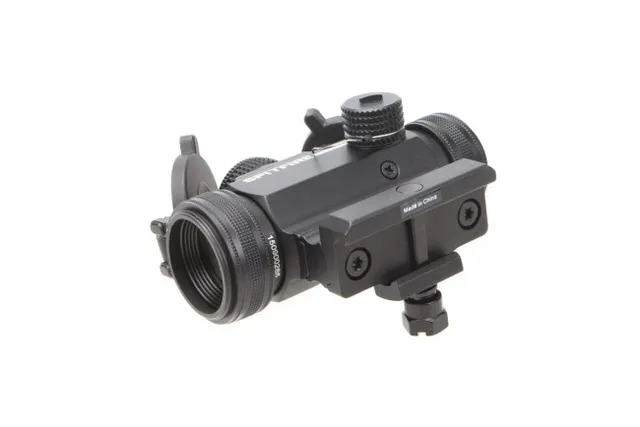

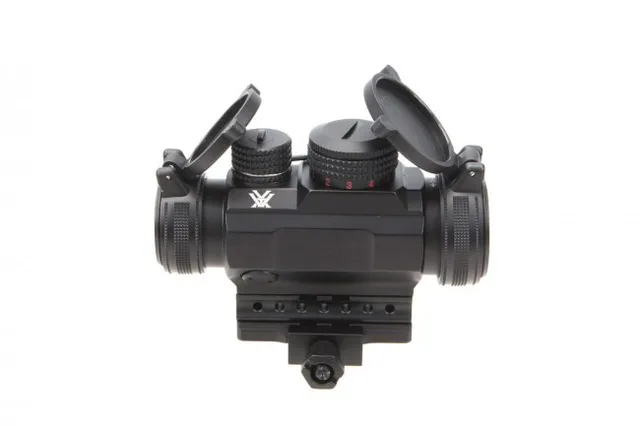

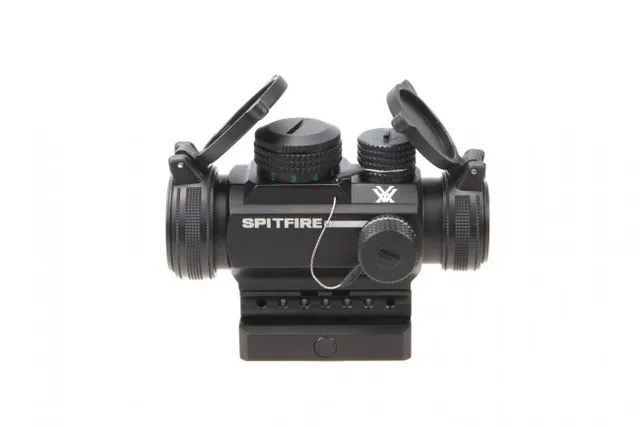

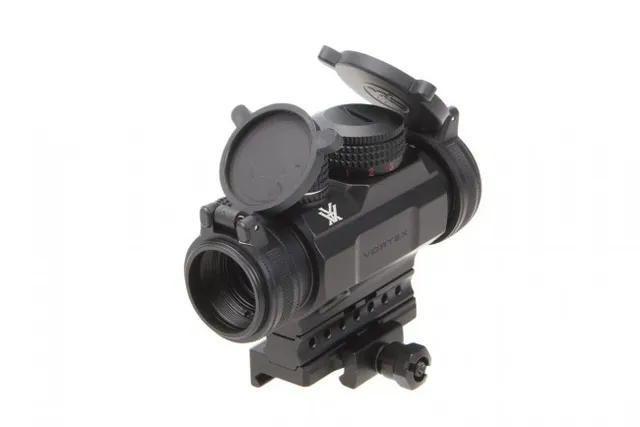

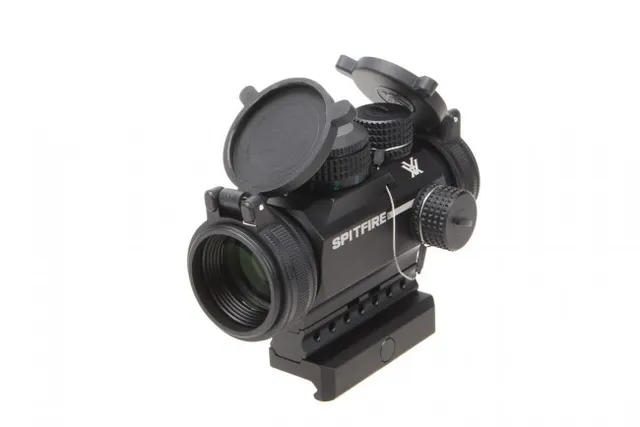

Vortex Spitfire 1x Prism Scope

Laced with advanced features, the sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality. The DRT (Dual Ring Tactical) reticle is etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions.
Optical Features

Fully Multi-Coated               Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.
Prism-Based Design           Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination.

Construction Features


Single-Piece Chassis         Compact and lightweight.
Waterproof                        O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof                            Nitrogen gas purging delivers fogproof, waterproof performance.
Shockproof                        Rugged construction withstands recoil and impact.
Hard Anodized Finish        Highly durable low-glare matte finish.
Operating Temperature      Rated from -22 degrees to +122 degrees Fahrenheit.



Convenience Features


Adjustable Brightness         Provides five levels of brightness intensity with red and green illumination settings.
Red/Green Reticle Option     Allows shooters a choice of dot color.
Battery Life                          Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting.
Variable Mount Heights        Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a      lower 30 mm mounted height is desired.




Magnification
1 x


Eye Relief
3.7 inches


Field of View
75 feet/100 yards


Adjustment Graduation
1 MOA


Max Elevation Adjustment
120 MOA


Max Windage Adjustment
120 MOA


Parallax Setting
Parallax Free


Length
4 inch


Weight
11.2
