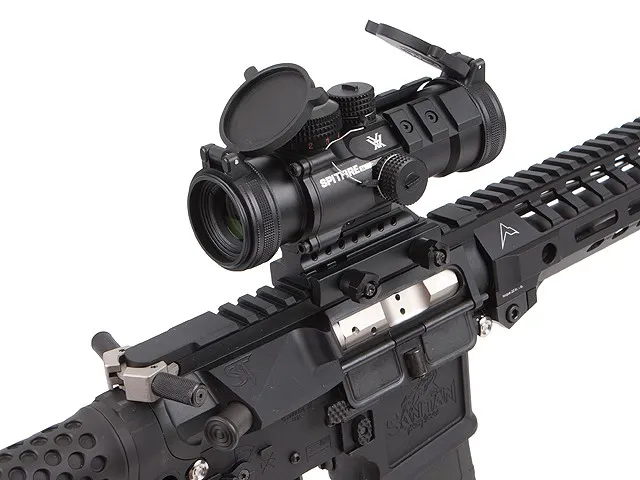

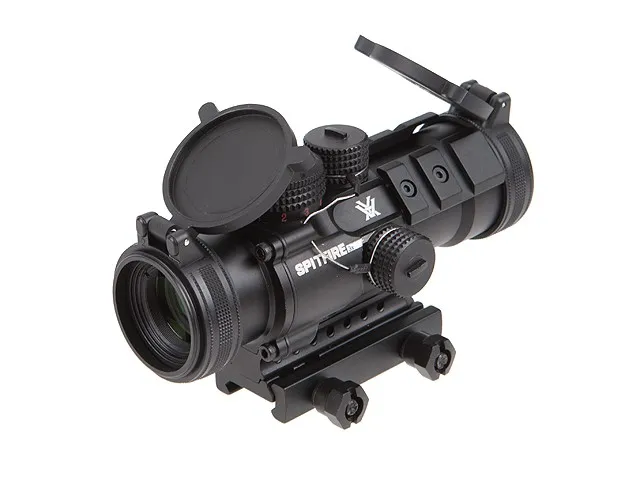

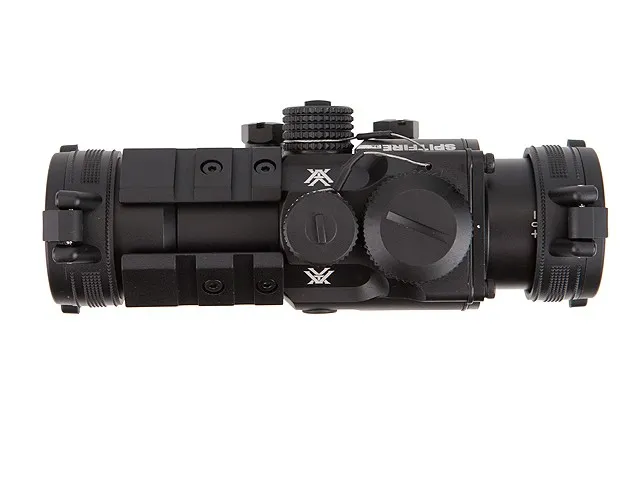

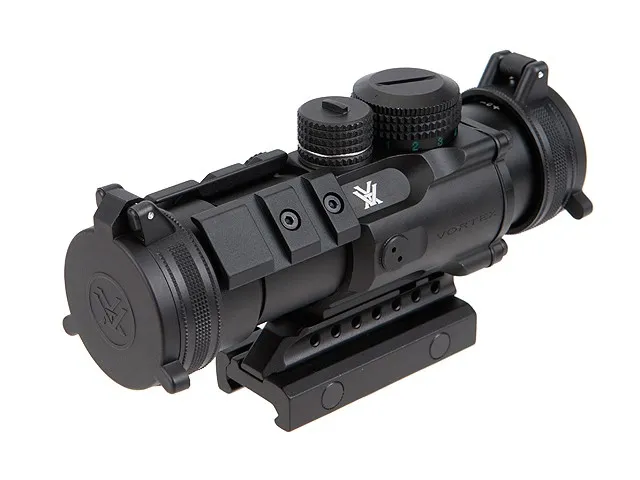

Vortex Spitfire 3X Prism Scope

Laced with advanced features, the sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality. The DRT (Dual Ring Tactical) reticle is etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions. Prism Scopes are not compatible with the VMX-3T Magnifier.




OPTICAL FEATURES



Fully Multi-Coated
Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.


Prism-Based Design
Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination.







CONSTRUCTION FEATURES



Single-Piece Chassis
Compact and lightweight.


Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.


Fogproof
Nitrogen gas purging delivers fogproof, waterproof performance.


Shockproof
Rugged construction withstands recoil and impact.


Hard Anodized Finish
Highly durable low-glare matte finish.


Operating Temperature
Rated from -22 degrees to +122 degrees Fahrenheit.







CONVENIENCE FEATURES



Variable Mount Heights
Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a lower 30 mm mounted height is desired.


Adjustable Brightness
Provides five levels of brightness intensity with red and green illumination settings.


Red/Green Reticle Option
Allows shooters a choice of dot color.


Battery Life
Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting.







Magnification
3 x


Eye Relief
2.8 inches


Field of View
31.5 feet/100 yards


Adjustment Graduation
1/2 MOA


Max Elevation Adjustment
120 MOA


Max Windage Adjustment
120 MOA


Parallax Setting
100 yards


Length
5.5 inches


Weight
15.4*
