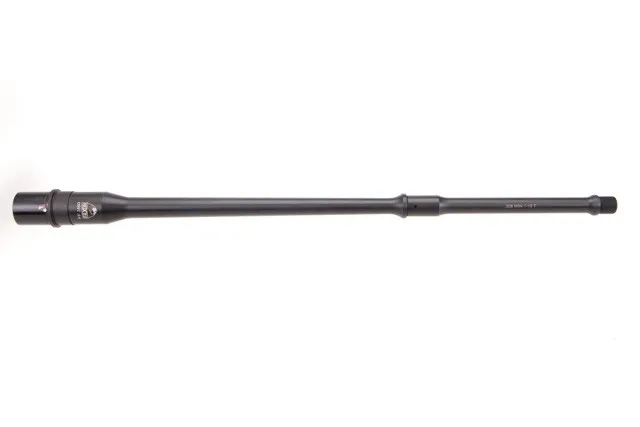

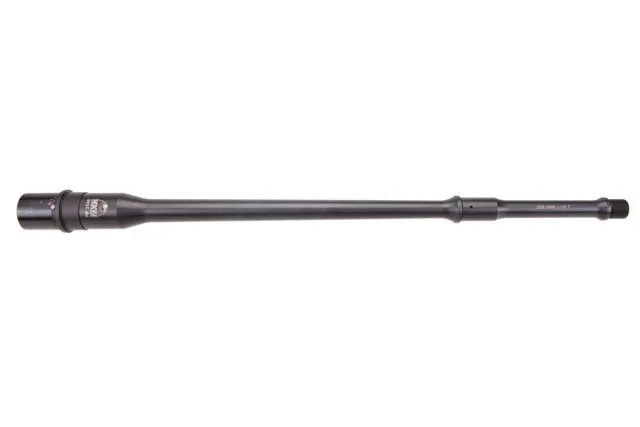

Faxon Firearms PENCIL .308 WIN

Faxon's pencil barrels are renowned for their lightweight performance. Fully stress relieved, we carefully designed the barrel's taper to remove weight while maintaining performance. The result is the lightest barrel in the industry - and one we are fully confident to put our Faxon shield on.
Faxon's .308 barrels feature 1/10 twist rifling for full stabilization across all common .308 loadings. Our barrels are chambered to .308 Winchester SAAMI specification for maximum versatility. All our barrels are manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.
Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.
Faxon manufactures all our barrels in Cincinnati, Ohio under our ISO:9001 and AS:9100  quality certifications.

Barrel Material: 4150 GBQ
Barrel Caliber: .308 WIN
Barrel Twist: 1:10

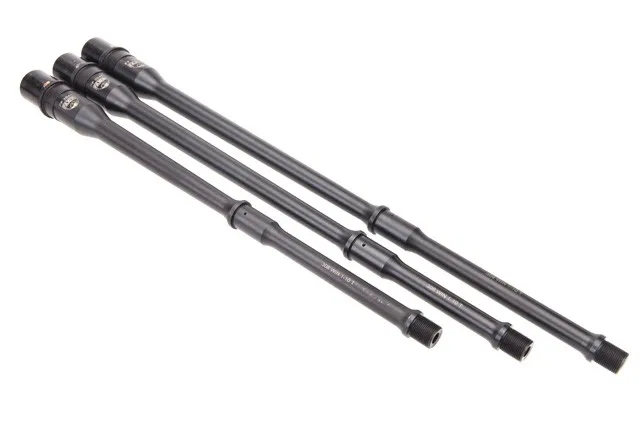

Barrel Length: 16” Weight: 1.78 lbs-Gas System: Mid
Barrel Length: 18” Weight: 1.97 lbs-Gas System: Rifle
Barrel Length: 20” Weight: 2.07 lbs-Gas System: Rifle
Barrel Profile: PENCIL
Inside Finish: QPQ Salt Bath Nitride
Outside Finish: QPQ Salt Bath Nitride

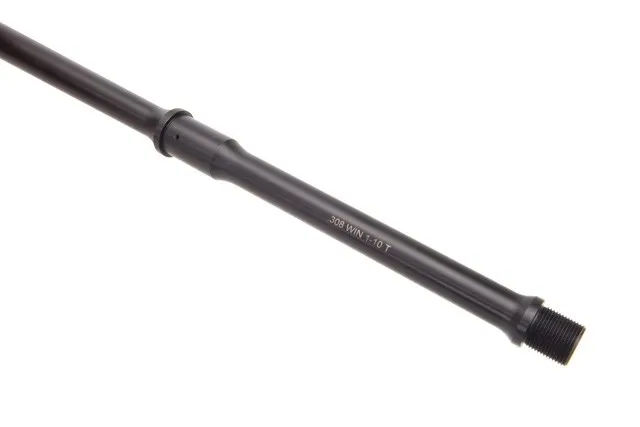

Muzzle Thread: 5/8-24 TPI
Gas Block Diameter: .750"
16" Gas Port Diameter: .081"
18" Gas Port Diameter: .093"
20" Gas Port Diameter: .093"
Gas Block Journal Length: 1.1"

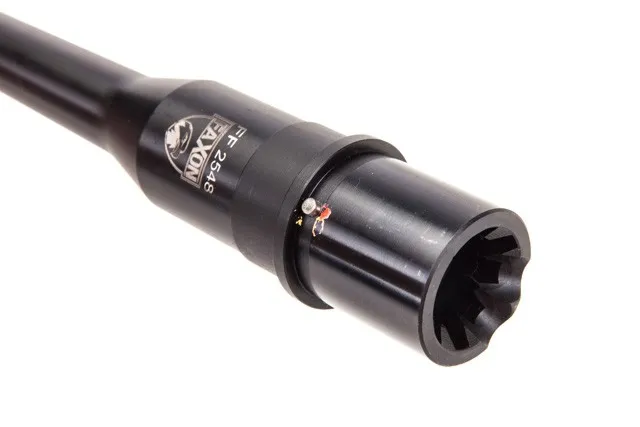

Barrel Extension: LR-308 (DPMS Compatible)
Magnetic Particle Inspected!
11-degree Target Crown

*Note - Faxon Firearms barrels are chambered to SAAMI specification .308 Winchester at a nominal headspace depth (passing "Go" and failing "No-Go").
7.62x51 NATO is not the same round as .308 Winchester, though it will fit within chamber. 7.62x51 technically requires deeper headspacing to meet the military specification and is known to function in Faxon .308 WIN barrels under most circumstances. However, due to the variation of components in the .308 AR world and variations between loadings, Faxon cannot guarantee or warrant function with 7.62x51, especially with bolts with tight ("match") .308  WIN headspacing.
