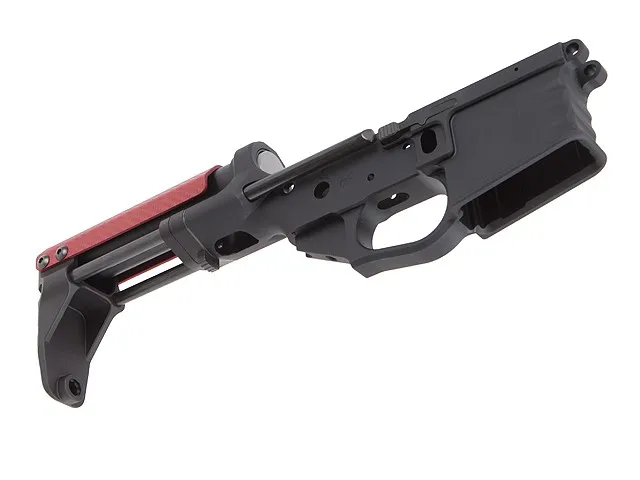

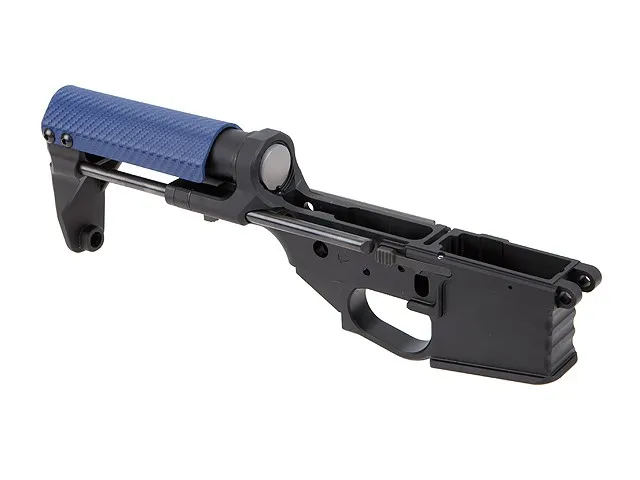

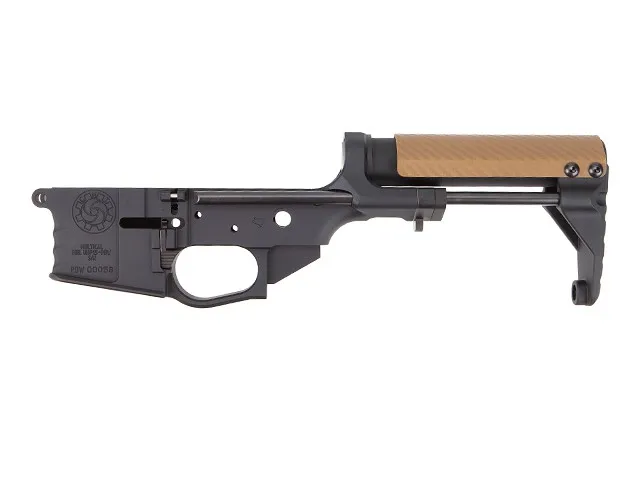

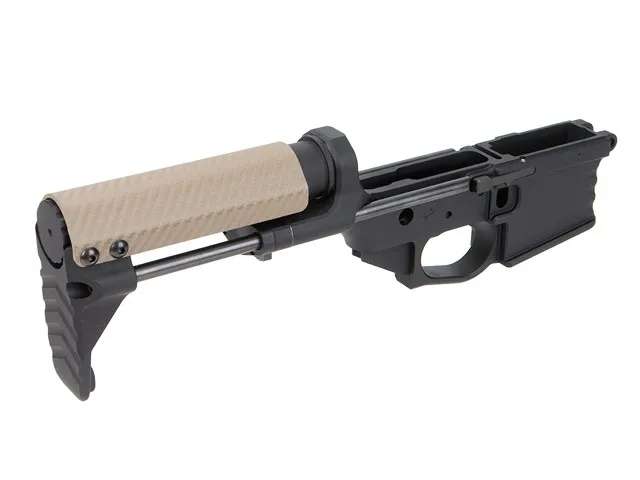

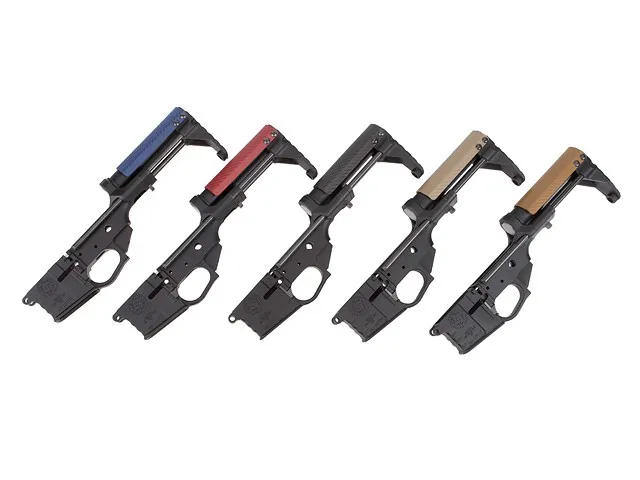

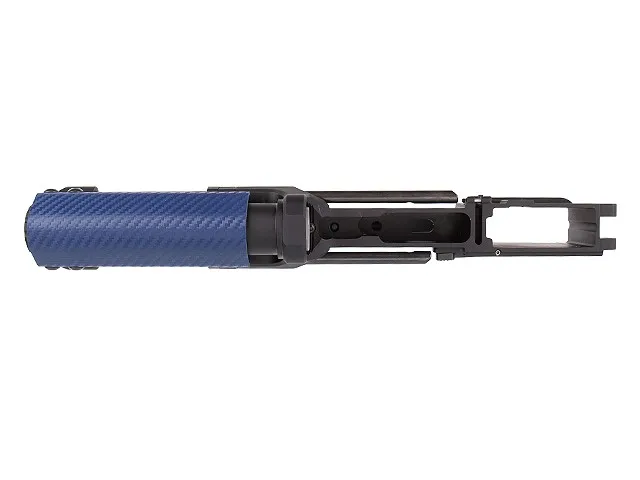

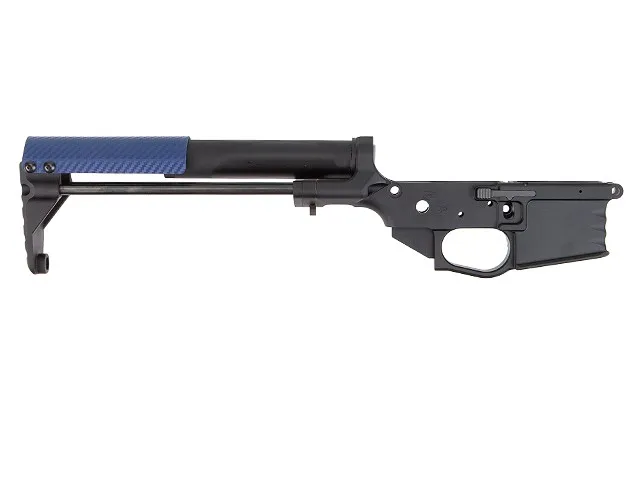

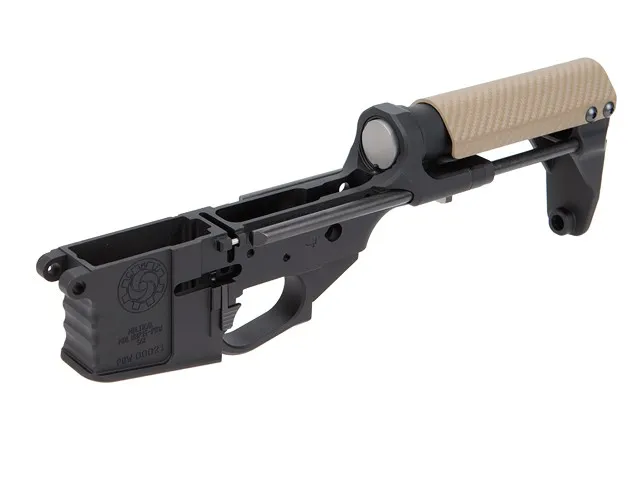

CMT Tactical AR-15 UHP15PDW INTEGRATED LOWER SYSTEM

The UHP15PDW Lower receiver features the Integration of a Patent Pending Monolithic adjustable PDW type stock system. This Patent Pending Monolithic stock/lower receiver design is the result of a collaboration between BattleArms Development & Cross Machine Tool. The UHP15PDW lower also includes the Ambi Bolt release & Ambi Mag Release Lever similiar to the UHP15A lower receiver. The Ambi Mag release Lever is designed to work in conjunction with the Standard Mil-Spec Mag catch arm without the requirement of proprietary components for proper function. This mag release lever design provides the user field repair options of the mag catch typically not found with most ambi mag release systems that utilize proprietary mag catch arms. The Ambi Mag Release features a raised fence on 3 sides to protect the mag release from accidental actuation during weapon use. The Bolt release Lever & Mag Release Lever feature aggressive Texturing to ensure proper finger placement & grip during actuation. The ambi bolt release, ambi mag release & buttstock adjustment rods are Black Nitrided for corrosion protection. The Integration of the stock rod system with the lower receiver creates a stonger continuous PDW platform & also allows for the addition of a cheek weld that extends with the buttstock not currently found with bolt on PDW stocks due to the bolt on housing design that extends rearward over the buffer tube.

5 AXIS CNC MACHINED FROM 7075 T6 BILLET
TYPE III CLASS II ANODIZED BLACK
WIRE EDM MAG-WELL PROFILE
.154” DIAMETER REAMED TRIGGER & HAMMER PIN HOLES
MULTI CAL MARKED
INTEGRALLY MACHINED TRIGGER GUARD
3.3oz TUNGSTEN WEIGHTED BUFFER W/SPRING
INDUSTRIES SMOOTHEST WIRE EDM CUT FLARED MAGWELL, COMPATIBLE WITH USGI AND MAGPUL GEN 2/3 MAGAZINES
NO ROLL PINS NEEDED FOR ASSEMBLY
UPPER TENSIONING SCREW
BOLT CATCH ASSEMBLY SCREW
LIFETIME WARRANTY AGAINST MANUFACTURE DEFECTS
AMBI BOLT RELEASE/ HARDWARE
AMBI MAG ARM RELEASE LEVER
PATENT PENDING INTEGRATED 4 POSITION STOCK WITH 4.125" INCHES OF EXTENSION
PATENT PENDING PDW STOCK CHEEK WELD

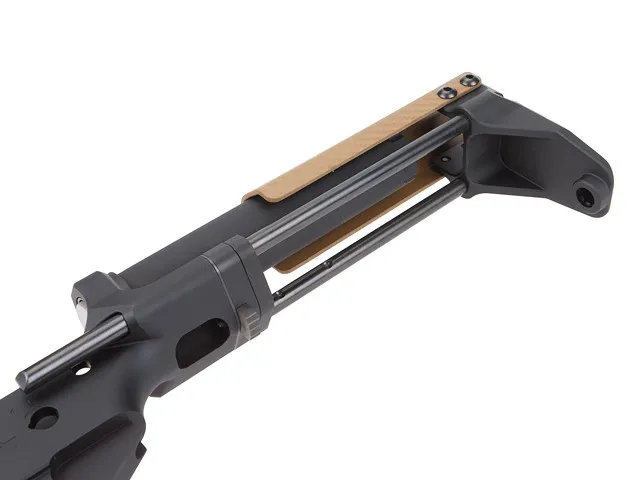

PATENT PENDING PDW INTEGRATED STOCK ROD LINEAR BUSHING GUIDANCE SYSTEM
PATENT PENDING STOCK BALL LOCK MECHANISM
COMPATIBLE WITH STANDARD LOWER PARTS KITS
WEIGHT COMPLETELY ASSEMBLED- 2LBS 4OZ. ( wt. includes standard LPK & grip not included with the UHP15PDW)
INTEGRATED STOCK IS 1.75" SHORTER (LOP) THAN A STANDARD MILSPEC CARBINE STOCK WHEN IN THE COLLAPSED POSITION.

FFL Required Before Shipping.
Please have your dealer email their license to [email protected] or they can also fax it in. Please give us a few days to process the information.
