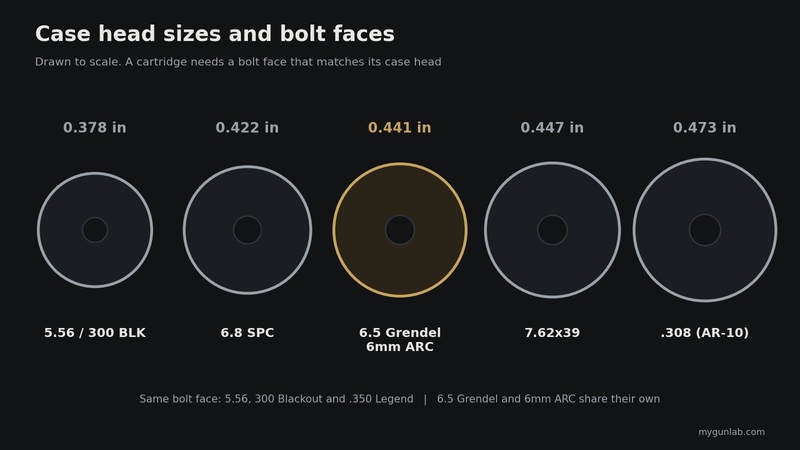

Short answer: yes, 6.5 Grendel needs its own bolt. Its case head is 0.441 inches across, against 0.378 inches for 5.56 and 300 Blackout, so a standard AR-15 bolt face is too small. Buy a 6.5 Grendel bolt carrier group (or a Grendel bolt for your carrier); the carrier itself is a normal AR-15 carrier. 6mm ARC uses the same bolt.
What changes from a 5.56 AR-15
| Part | 6.5 Grendel | Why |
|---|---|---|
| Bolt | Grendel bolt | Larger bolt face for the 0.441 in case head |
| Barrel | 6.5 Grendel barrel | Different chamber and bore |
| Magazines | 6.5 Grendel magazines | The fatter case needs a different magazine |
| Lower receiver | Same | Any mil-spec AR-15 lower works |
| Upper receiver | Same | A standard AR-15 upper works |
| Muzzle device | Usually 5/8x24 | Most Grendel barrels use 5/8x24 threads |
Bolt types
Grendel bolts are sold in different types (often called Type I, II and III) that differ in lug and extractor design. Use the type your barrel maker recommends, and check headspace with gauges when you pair a new bolt with a barrel.
Parts that fit
Compare 6.5 Grendel bolt carrier groups, barrels and magazines, and see what 6.5 Grendel costs to shoot on our ammo cost per round page. The AR-15 builder flags a bolt that doesn't match your barrel's caliber.
Frequently asked questions
Can I use a 5.56 bolt in a 6.5 Grendel?
No. The Grendel case head is 0.441 in and the 5.56 bolt face is made for 0.378 in, so it won't work.
Does 6mm ARC use the same bolt as 6.5 Grendel?
Yes. 6mm ARC is based on the 6.5 Grendel case, so it uses the same bolt face and magazines.
Do I need special magazines for 6.5 Grendel?
Yes. The wider case needs 6.5 Grendel magazines; 5.56 magazines won't feed it reliably.
Can I keep my AR-15 carrier?
Usually yes: the carrier is standard, and only the bolt changes. A complete Grendel bolt carrier group is simpler if you don't want to swap bolts.
